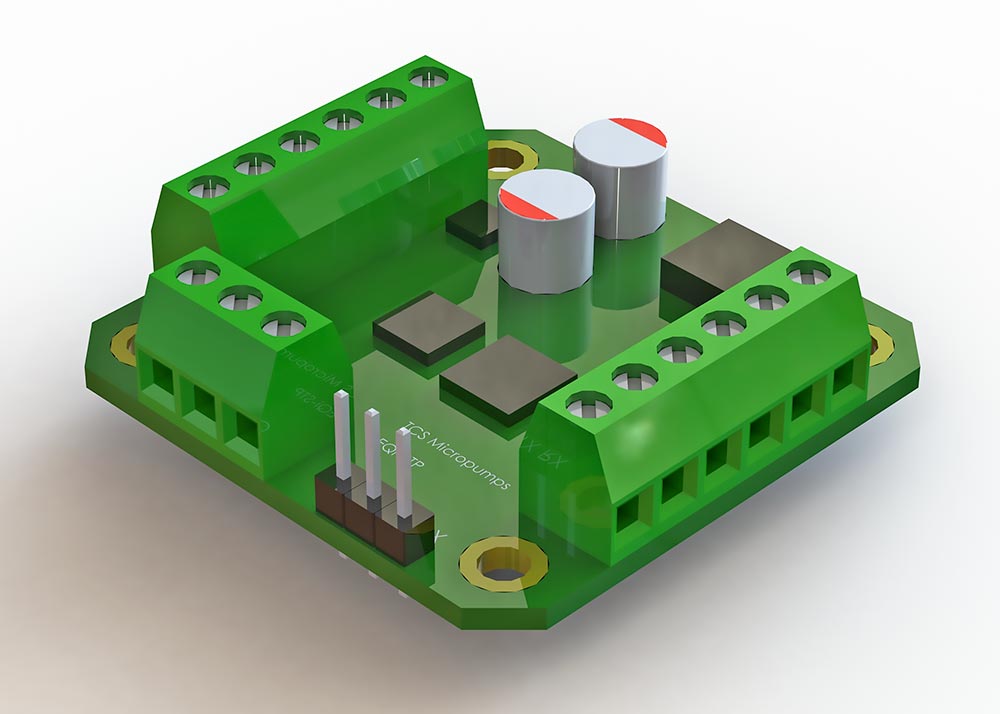

EQi-STP-MG2

• Input Voltage 12-24Vdc
• Designed to be installed in-line with the pump's own wiring
• Flow can be controlled via an onboard Pot. or a 0-3.3v signal
• Reversible
• Dimensions 40x40x12mm
• Operating Temperature 0 to +50 Degrees Celsius
• Weight 15g
• UART Programmable
• Pre-programmed / or software available to download below

TCS CONTROLLER SOFTWARE USER GUIDE:

• Compatible with Windows
• Requires TCS-651 or UART to USB cable (MUST BE 3V3!)
• Full adjustability of controller
• Read TCS suggested parameters in the guide to avoid damaging your TCS Controller/Pump

Download the TCS Controller Software
